Duplo DFC-120 12-Bin Friction Feed Collator, Up to 70 sets per minute or 4,200 straight stacking sets per hour, Paper Size (Min./Max.) 5.83" x 8.27" to 12.60" x 17.72"

Description

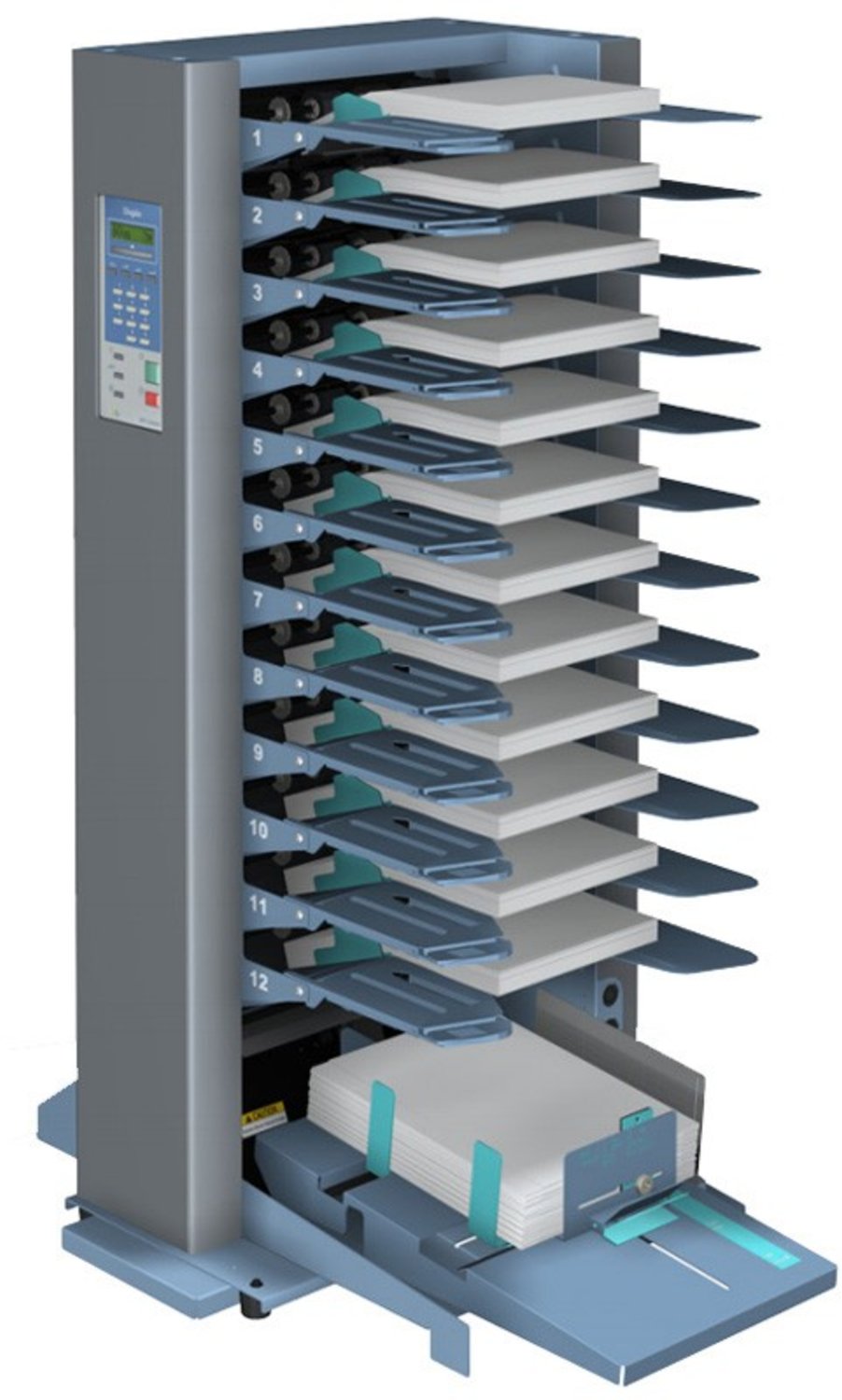

Duplo DFC-120 12-Bin Friction Feed Collator, Production speed of 4,200 sets an hour, Covers 160 x 140mm to 320 x 450mm formats, 3 wheel friction feed, Adjustable separator and tray pressure on each bin to cope with different materials The DFC-120 friction collator is a bench-top friction fed collating unit which can build into a system with up to 24 stations by combining two units. The three-wheel feed system provides reliable feeding of a wide range of material, including certain coated stocks. A number of options increase the versatility of the DFC-120, including integration with the Duplo DBM-120 bookletmaker. Key Features User-friendly control panel offers several programmable settings Triple wheel feeding system provides maximum contact for flawless feeding Offers offset collating or straight according to the job Covers 160 x 140mm to 320 x 450mm formats Paper range, subject to type, covers 50-130gsm Sensors to detect empty bins, doubles and paper jams Adjustable separator and tray pressure on each bin to cope with different materials Production speed of 4,200 sets an hour Specifications Collating Stations: 12 (2 tower option for 24) Feed System: 3 wheel friction feed Capacity Per Station: 28 mm (260 mm sheets @ 80 gsm) Sheet Size Min: 140 x 160 mm Sheet Size Max: 320 x 450 mm Paper Weight: 52.3 - 127.9 gsm Speed (sets/hr): 4200 sets / hour Programmes:Interleave insertion mode, block mode, alternate mode, normal mode Counters: Total/batch Detection Systems: Miss, Double – Feed, No Paper, Stacker Full Stacking Modes: Straight, offset stack Stacking Capacity: 78 mm Dimensions (WxDxH): 820 x 618 x 1144 mm Net Weight: 74.2 kg
