Voltage: 120 volts
Amperage: up to 50 amps
Type: Pass-Through, Single-Phase, 60Hz
Data: Pulse Output - 800 pulses per kWh
Model: EKM-15IDS

Our EKM-15IDS is a revenue grade kWh submeter. It is great for metering any 120 volt load to a high accuracy required for billing purposes or just for tracking usage. This meter provides an excellent value if you are looking for a simple, read-off-the-face meter. Very reliable and easy to install. This is the 120 volt version of our EKM-25IDS which is a 120/240 volt 3-wire meter.

State-of-the-art, fully solid-state kWh meter with 800 pulses per kWh pulse output

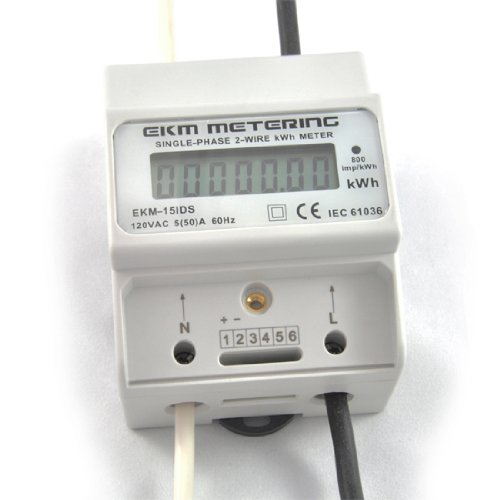

Accurate to within 1%, LCD readout in hundredths of a kWh, to 99999.99 kWh. No conversion factor or multiplier needed.

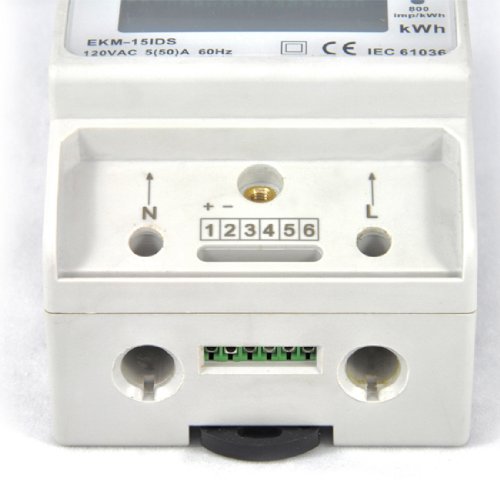

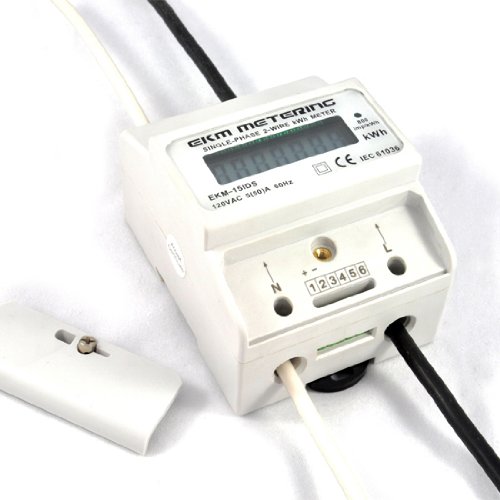

Compact, very easy to install design. Simple DIN-rail mounts. Wires pass through 3/8+" diameter tubes in the meter body--Will accept some (but not all) #2AWG insulated wire. The only electrical connection is made by 2 small screws which penetrate the wire insulation and pick up power for the meter and give the meter it's voltage reference. This meter draws less than 1 watt.

Non-resettable LCD display. Usage data is stored even if the meter loses power for 10 years. Tamper-proof and meter sealable.

Single-phase energy meter, 50A 120-volt 2-wire 60Hz

Most commonly a white neutral and a black or red hot wire, 110V to 126V between them. Very voltage tolerant--the meters will tolerate voltages from 84V to 156V!!

Perfect for knowing how much power your apartment, office, RV park, industrial space, or any other device that uses 120 volt electricity.

Manufacturer	EKM Metering Inc
Part Number	EKM-15IDS
Item Weight	12 ounces
Package Dimensions	5.79 x 3.82 x 2.8 inches
Item model number	EKM-15IDS
Is Discontinued By Manufacturer	No
Material	ABS
Power Source	Electric,solid-state
Amperage Capacity	50 Amps
Item Package Quantity	1
Display Style	LCD
Batteries Included?	No
Batteries Required?	No

Electric kWh Meter, 120 Volt, 2-Wire, 60Hz, up to 50A
