Product Description

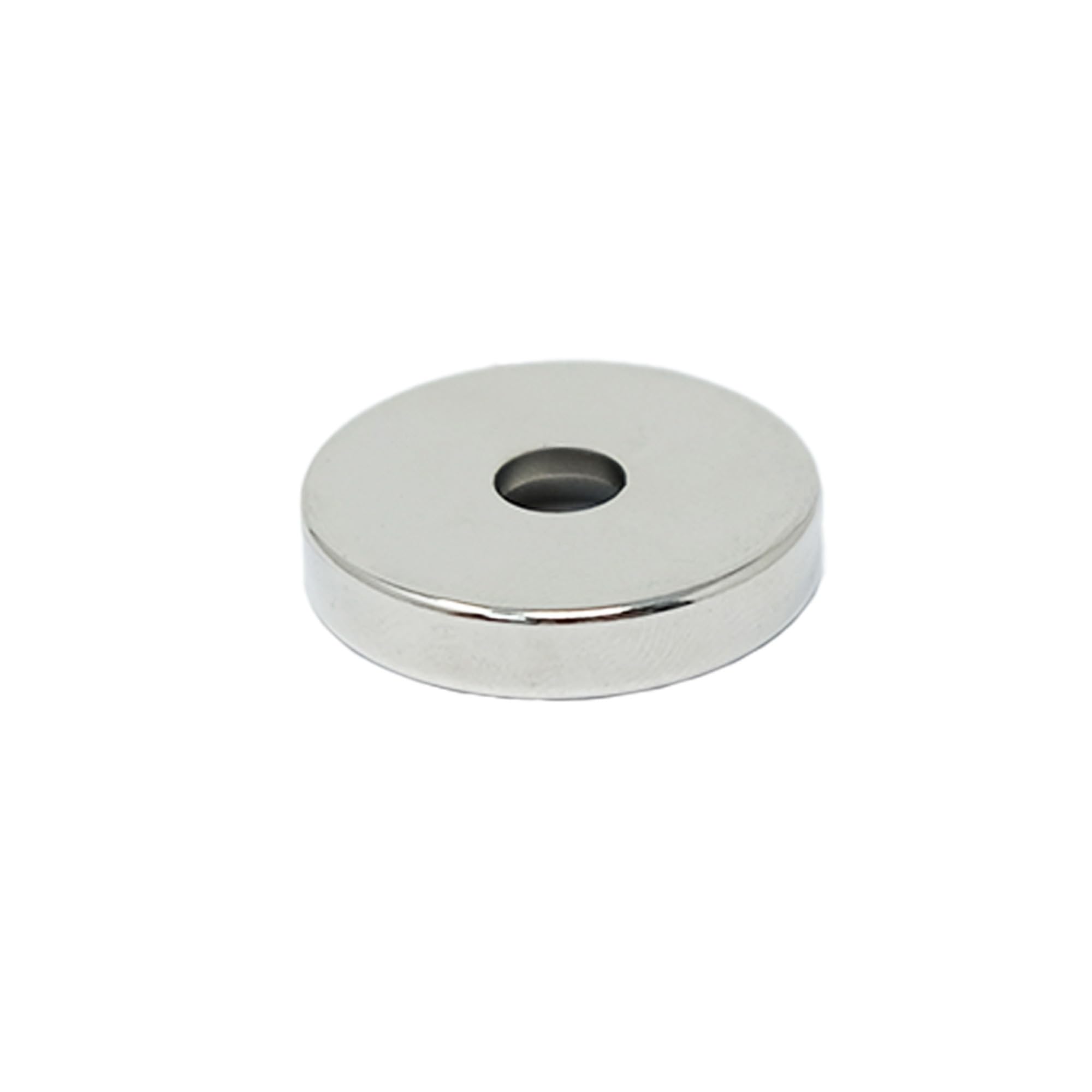

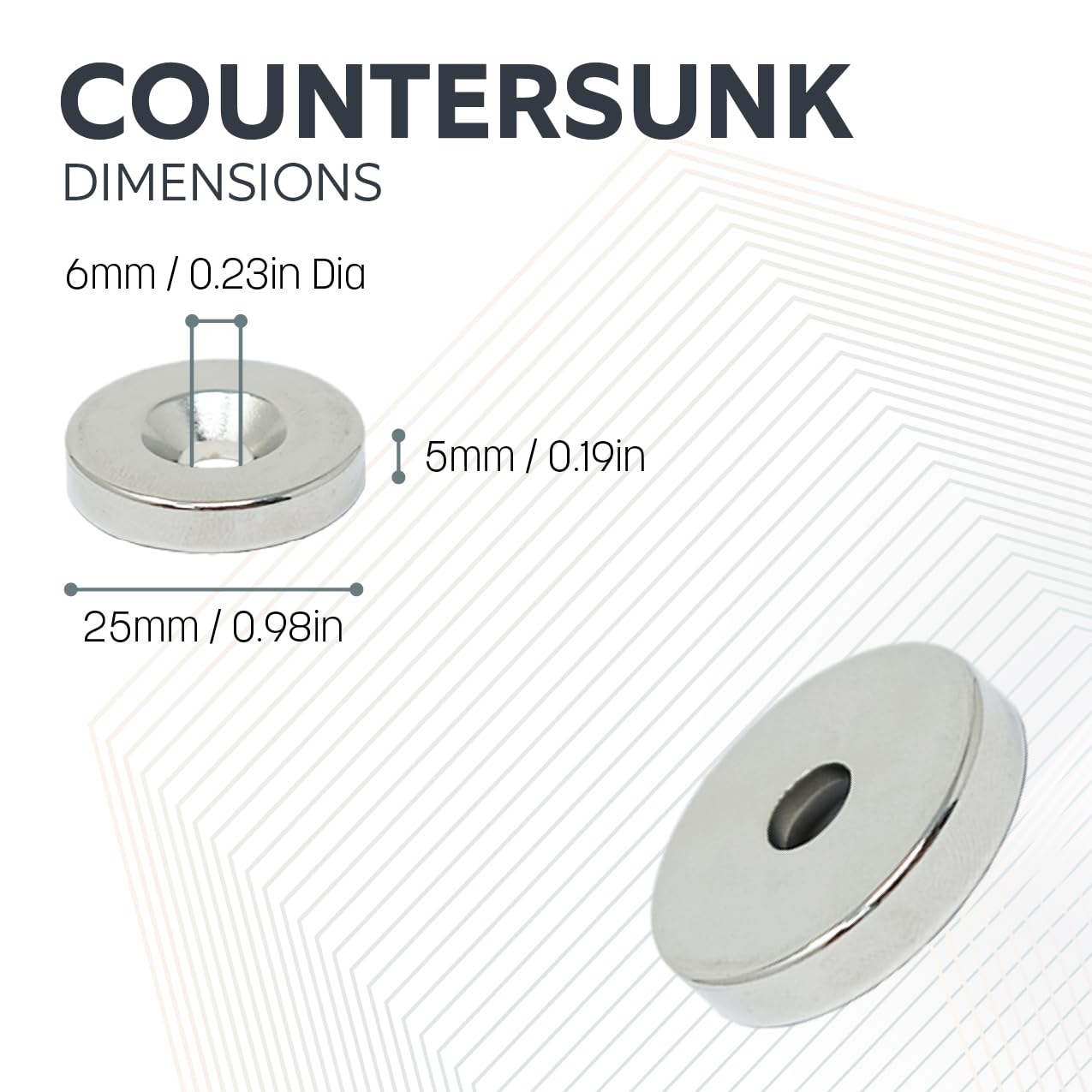

25mm diameter x 5mm thick with a 6mm diameter countersunk hole for fixing
+/-0.1mm tolerance
Each magnet has its south pole on the countersunk face

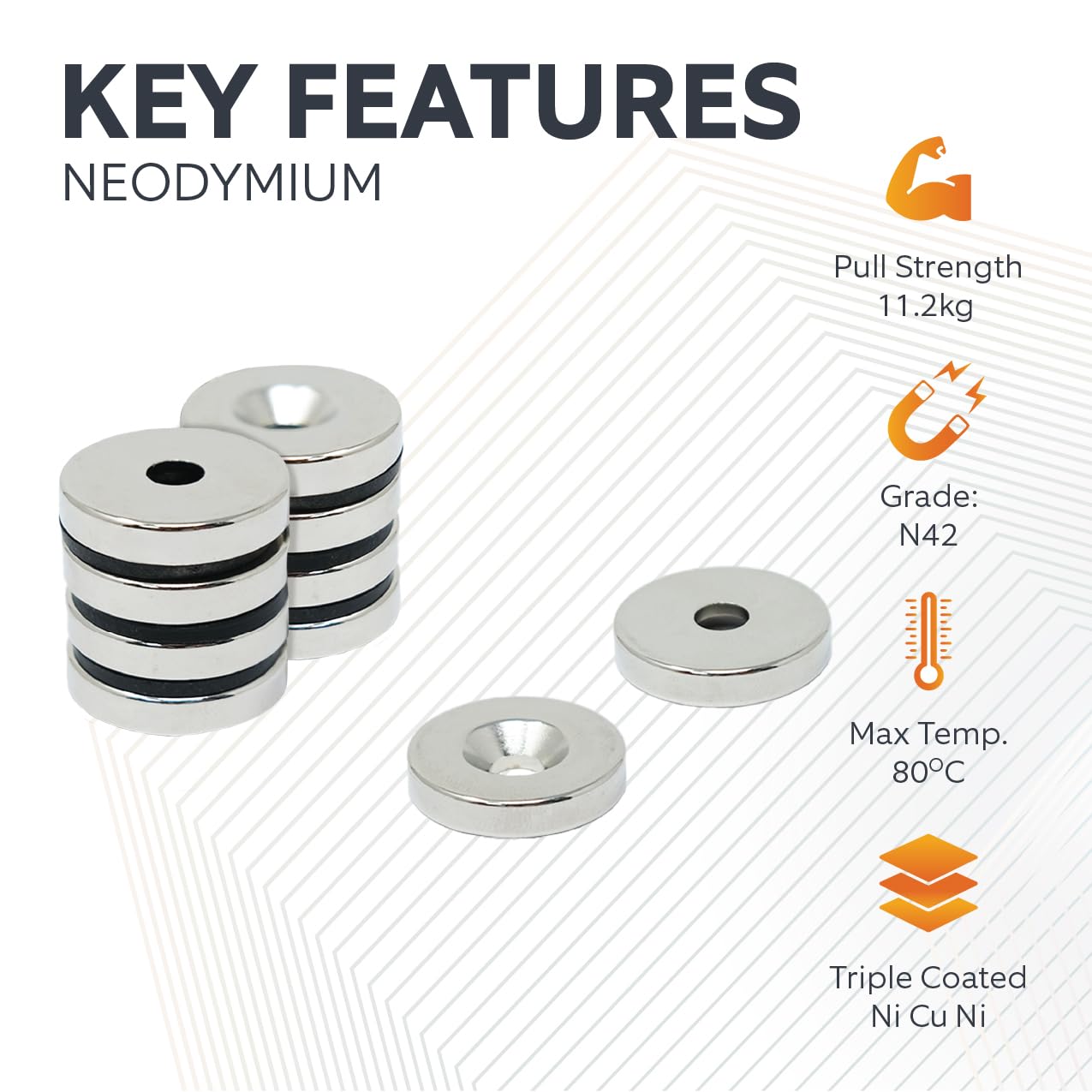

Each magnet can support 11.2kg pull vertically from the magnetic face when in flush contact with a mild steel surface
Coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth finish
Can be fixed in place with our 6mm diameter countersunk screws

Ideal for furniture fixings, hanging artwork and keeping doors and drawers closed, countersunk magnets have a central hole which allows them to be fixed to non-magnetic surfaces with a screw. Because of their superb strength these 25mm x 5mm countersunk circular magnets are also used in recovery and retrieval applications, providing an astonishing magnetic pull for a relatively small magnet. Countersunk magnets with opposite poles on the countersunk face can be used to attract two surfaces or two opposing countersunk magnets with the same pole on the countersunk face can be used to create a damping, shock absorbing or repelling effect. Also available with the north pole on the countersunk face.

Set Contains:

1 x 25mm dia x 5mm thick magnet(s)

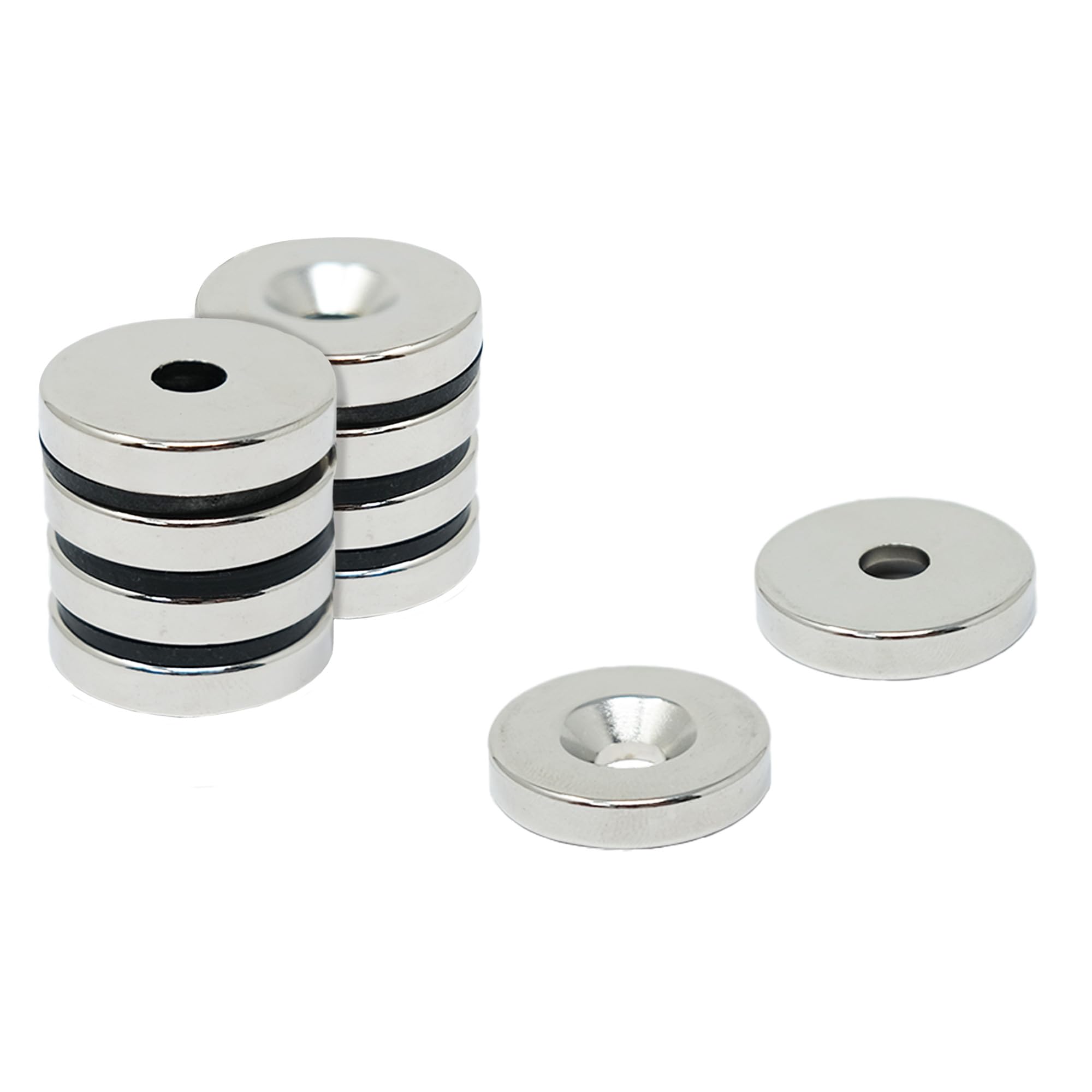

FIRST4MAGNETS Neodymium Magnet for Arts, Crafts, Model Making, DIY, Hobbies, Office and Home - 25mm dia x 5mm thick x 6.0mm c/sink - 11.2kg Pull - South
