Was hoping to feed this into a tv distribution box that feeds 3 tvs. As this unit has only an rf out where does it go , do I need to use a splitter

Question

Accepted Answer

If you also have an aerial antenna connected to the TVs, please use an amplifier with 2 UHF or VHF and UHF separate inputs, to connect the modulator output to an individual input of the amplifier, not combined with aerial antenna. Then, from modulator menu, please adjust the modulator RF OUT LEVEL to -8db using this manual: https://edision.gr/index.php?ACTION=_download_file&fp=23908
The modulator’s default output channel is UHF 43. In case you have a 2 UHF amplifier and no TV aerial channel in 43, no need to adjust. In case you connect the modulator to VHF input of the amplifier or in UHF for which you must also change channel output number , please use to manual above to adjust OUTPUT CHANNEL NUMBER.
Finally, scan the TVs, so to find the modulator channel in the same list as the DVBT/T2 , MPEG4 TV channels.
Please note that the solution that you want is technically advanced, so we suggest consulting a specialized RF technician for this project, in combination with the technical information in the manual.

ASIN	B077VR428X
Item model number	07-06-0005
Manufacturer	EDISION
Product Dimensions	10.05 x 4 x 16.5 cm; 520 g

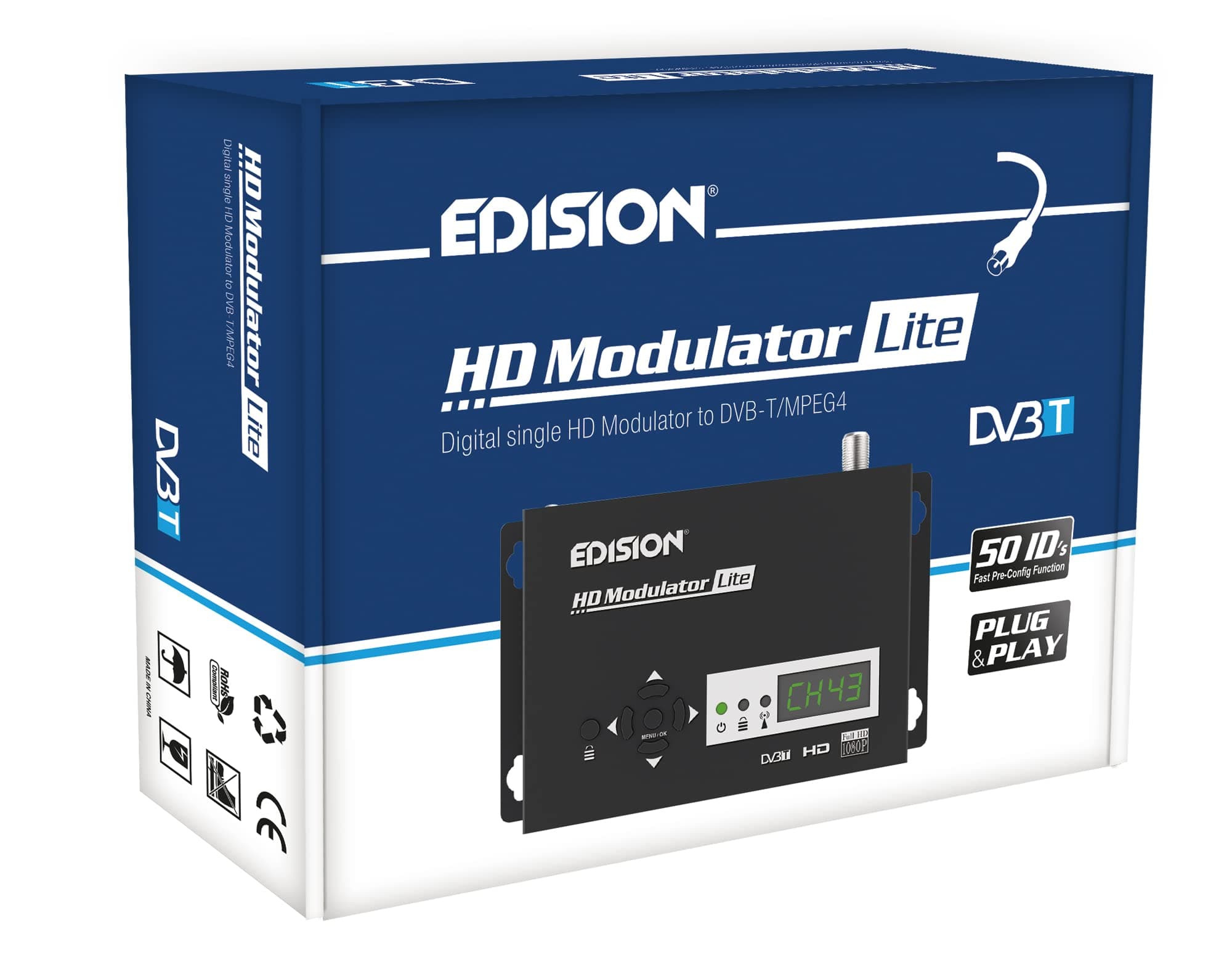

HDMI module lite
