Will this replace part # 52860? 8lug 3inch tube

My axle was a 12” hub by 2” wide brake pads. The brake housing has a center hole that you need to measure along with how many nuts that it takes to mount. Mine took 5 some take 4. As you look for the new brake assembly you will need to know the details to make sure you get the correct brake assembly. Hope that helps you.

will these work for a PJ dump trailer? it has 2 7k axles and 8 lugs

It should. Mine are the same 7k axles, 8 lugs and they work great.

Self adjusting? Saw two different answers.

The trailer brakes are NOT self adjusting, unlike most drum brakes on cars and trucks. There is however some "give" with an electric braking system on trailers. The adjustment is pretty simple and need to be done when installed and periodically thereafter. To Adjust: the bottom side of the drum brakes between the brake shoes you should see the "Adjuster" with a spring between the two shoes- This screwed wheel is your adjuster. It will need to be manually adjusted on install- to do that remove the rubber plug on the back side of the Backing plate and using a large flat tip screw driver or brake show adjuster tool and rotate while spinning the Drum until it stops the drum. Then Back the adjuster off just a little until the drum spins easily again. Replace the rubber plug. Do this for all Electric Brake units.

Desertcart Logo

Deliver to Philippines

For best experience Get the App

DOWNLOAD THE APP

WE SOURCE ITEMS FROM

UAE
UK
India
USA
Japan
KOREA

Customer Services

About Us

Customer Support

Description

🚚 Upgrade Your Towing Game!

PRECISION FIT - Designed to fit #42 spindles with a 5-bolt brake flange.
ROBUST DESIGN - Engineered for 5200-7000 lb axles, ensuring reliability under pressure.
EFFORTLESS REPLACEMENT - Includes 2 right and 2 left assemblies for a complete upgrade.
HEAVY DUTY PERFORMANCE - Weighing in at 60 lbs, built to withstand the toughest towing conditions.
UNMATCHED COMPATIBILITY - Seamlessly fits Dexter and most axles for hassle-free installation.

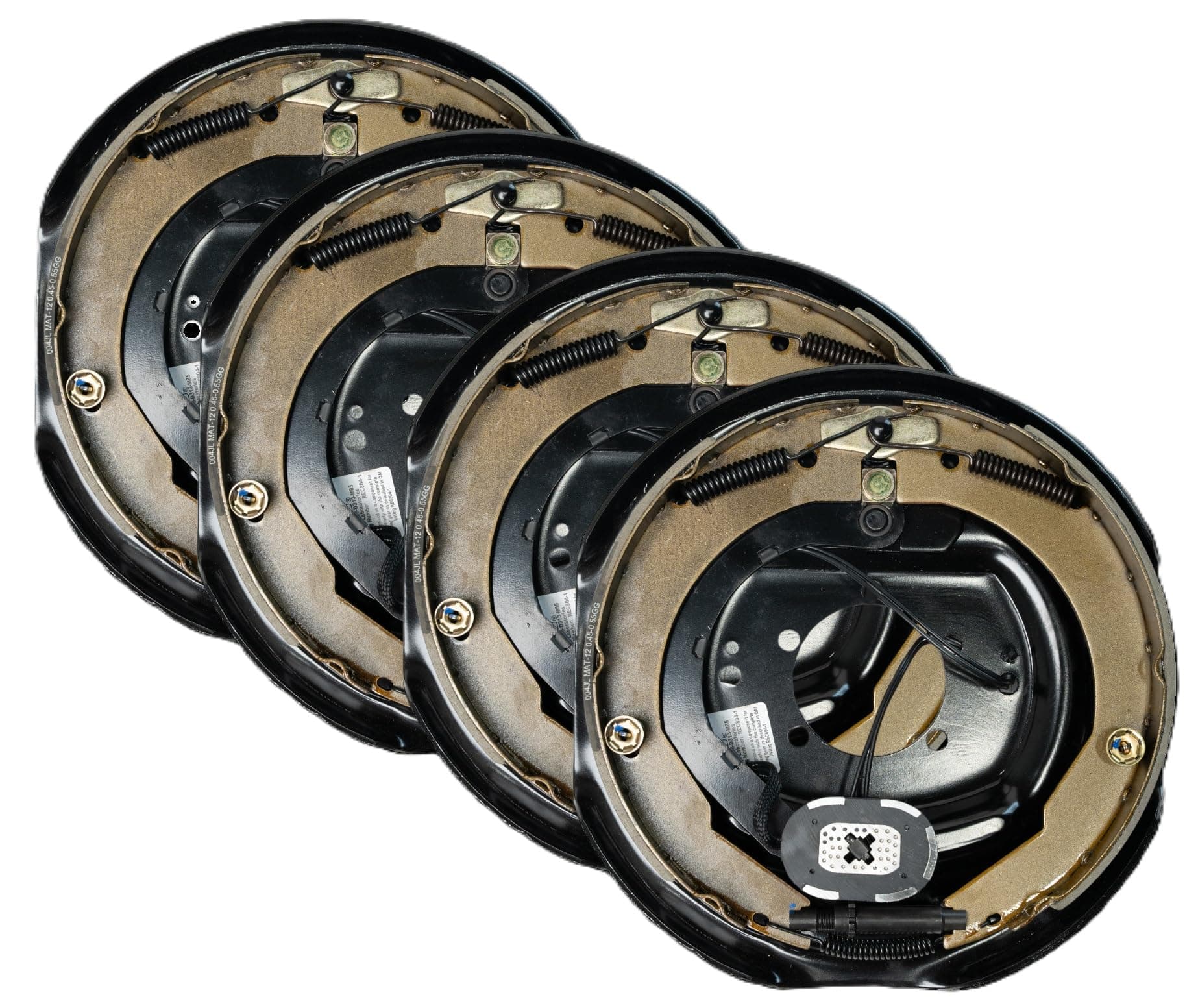

The ECustomhitch Electric Trailer Brake Assembly is a robust and reliable braking solution designed for 5200-7000 lb axles. This kit includes two right and two left assemblies, featuring a 5-hole mounting pattern and compatibility with Dexter and most axles. With dimensions of 14 x 12 x 14 inches and a weight of 60 pounds, it promises durability and performance for all your towing needs.

Size	12 inches
Brand	ECustomhitch
Wheel Size	12 Inches
Item Diameter	12 Inches
Vehicle Service Type	Trailer
Rim Width	12 Inches
UPC	191215150038
Seasons	Year Round
Model	BE12-70L-BE12-70R
Item Weight	24 pounds
Item model number	5
Is Discontinued By Manufacturer	No
Manufacturer Part Number	Replaces K23-180-00 & K23-181-00
Bolt Pattern (Number of Holes)	6

4-pack tire set
